PRODUCT OVERVIEW

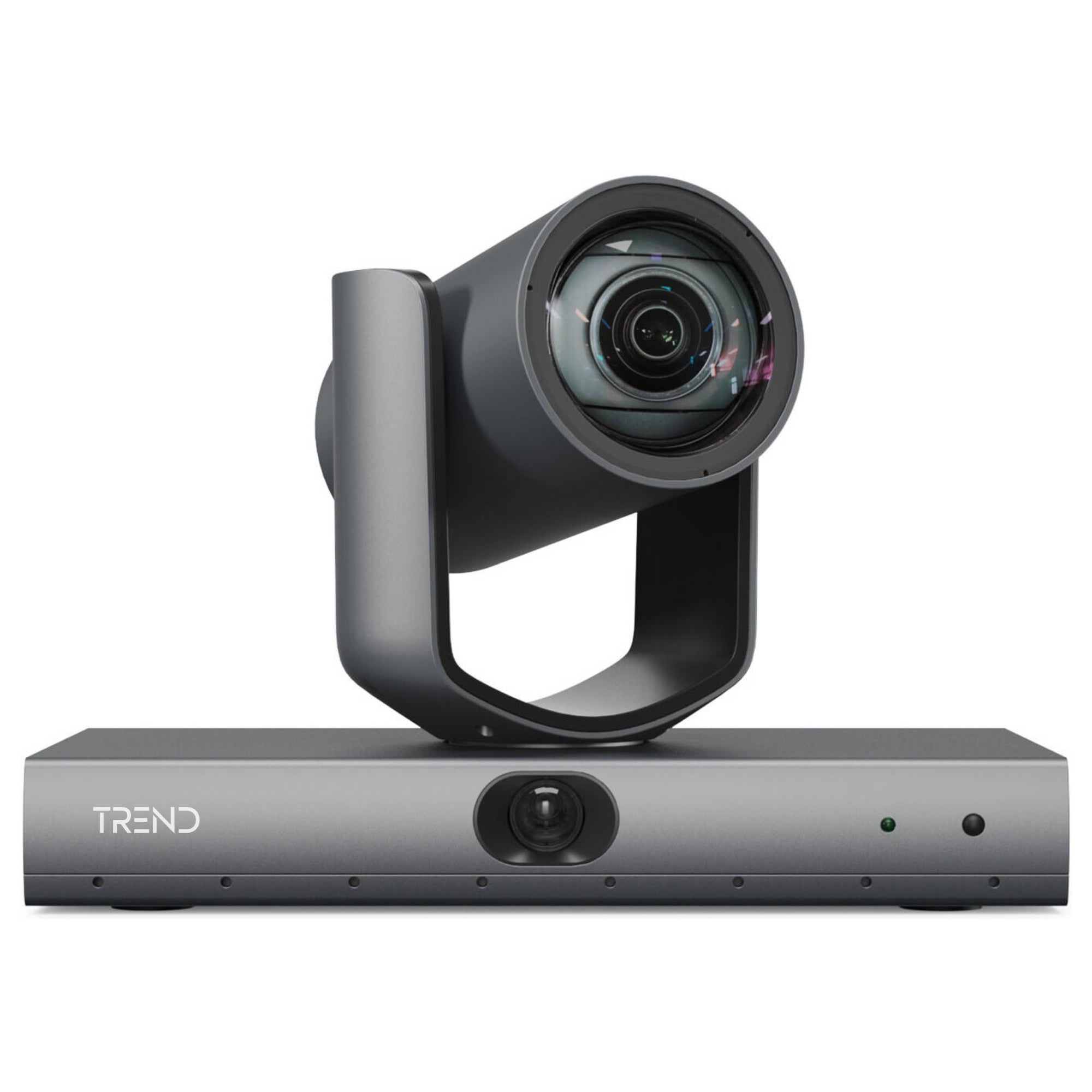

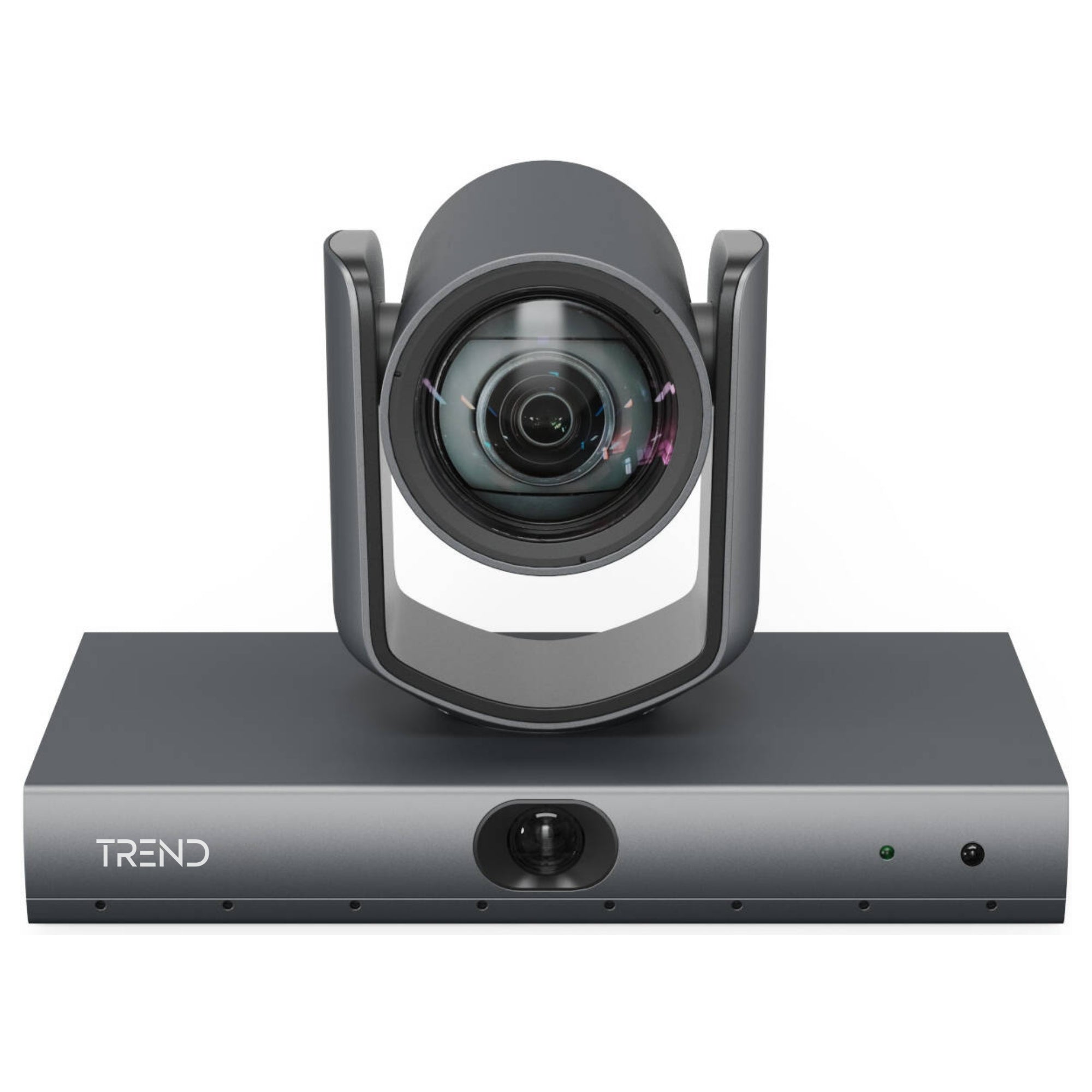

TREND TR-VC40-DU AI Dual-Lens 1080p PTZ Tracking Camera with 12X Optical Zoom, Auto-Framing & 8-Element Mic Array:
The TREND TR-VC40-DU AI Dual-Lens Tracking Camera is a professional video conferencing solution designed to deliver clear, natural and intelligent communication in medium-to-large meeting rooms, training rooms, classrooms and presentation spaces. Its dual-lens design combines a 1080p close-up PTZ camera with 12X optical zoom and 72.5° horizontal field of view with a 1080p panoramic camera offering an ultra-wide 110° view, allowing participants to be captured clearly whether they are seated around a table or presenting at the front of the room. Intelligent auto-framing, speaker tracking, presenter detection and automatic lens switching help ensure that remote participants always see the right person at the right time.
For enhanced audio-video coordination, the TR-VC40-DU features an integrated 8-element linear microphone array with up to 8-meter detection distance and DOA accuracy below 5°, enabling accurate speaker positioning and smoother tracking transitions. Whiteboard and writing-gesture detection make it easier to share ideas and presentations, while USB, HDMI, 3G-SDI, PoE networking and professional control interfaces provide flexible integration with modern conferencing systems. With smooth PTZ movement, 64 preset positions, VISCA control and a compact professional design, the TREND TR-VC40-DU delivers a powerful all-in-one solution for engaging and efficient hybrid meetings.
|
🎥 Dual-Lens 1080p Imaging – Combines panoramic and close-up cameras for versatile meeting coverage. 🔍 12X Optical Zoom – Captures speakers and presenters clearly even from a distance. 🌐 110° Panoramic View – Provides an ultra-wide view for rooms, groups and collaborative sessions. 📐 72.5° Close-Up FOV – Delivers a focused view while maintaining excellent room coverage. |
 |
 |
🤖 AI Auto-Framing – Automatically keeps participants centered as people enter, leave or change seating positions. 🗣️ AI Speaker Tracking – Detects the active speaker and intelligently follows the conversation. 🎤 Presenter Tracking – Helps keep presenters visible during presentations and demonstrations. 📝 Whiteboard Detection – Recognizes whiteboard writing and gestures for clearer knowledge sharing. |
|
🔄 Automatic Lens Switching – Smoothly switches between panoramic and close-up views according to the meeting situation. 🎙️ 8-Element Microphone Array – Provides intelligent audio pickup and accurate speaker positioning. 🎯 <5° DOA Accuracy – Enables precise Direction of Arrival detection for improved audio-video coordination. 📡 Up to 8m Mic Detection – Designed to capture voices across medium-to-large meeting spaces. |
 |
 |
⚡ Fast USB Connectivity – USB host and USB 3.0 interfaces simplify integration with conferencing equipment. 🔌 PoE Support – Network connectivity and power can be streamlined through the RJ-45 PoE interface. 📺 Multiple Video Outputs – Supports HDMI and 3G-SDI for professional display and production environments. 🎛️ Professional PTZ Control – Supports smooth pan and tilt movement with precise camera positioning. |
|
📍 64 Preset Positions – Quickly recall frequently used camera angles with preset positioning. 🎚️ Flexible Exposure & Focus – Supports automatic and manual focus, exposure and shutter control. 🖥️ Unified AV Integration – Designed to route conferencing audio and video through the host system. 🏢 Built for Professional Rooms – Ideal for meetings, training, presentations, discussions and whiteboard sessions. |
 |
🎥 Dual-Lens 1080p Imaging – Combines panoramic and close-up cameras for versatile meeting coverage.
🔍 12X Optical Zoom – Captures speakers and presenters clearly even from a distance.
🌐 110° Panoramic View – Provides an ultra-wide view for rooms, groups and collaborative sessions.
📐 72.5° Close-Up FOV – Delivers a focused view while maintaining excellent room coverage.
🤖 AI Auto-Framing – Automatically keeps participants centered as people enter, leave or change seating positions.
🗣️ AI Speaker Tracking – Detects the active speaker and intelligently follows the conversation.
🎤 Presenter Tracking – Helps keep presenters visible during presentations and demonstrations.
📝 Whiteboard Detection – Recognizes whiteboard writing and gestures for clearer knowledge sharing.
🔄 Automatic Lens Switching – Smoothly switches between panoramic and close-up views according to the meeting situation.
🎙️ 8-Element Microphone Array – Provides intelligent audio pickup and accurate speaker positioning.
🎯 <5° DOA Accuracy – Enables precise Direction of Arrival detection for improved audio-video coordination.
📡 Up to 8m Mic Detection – Designed to capture voices across medium-to-large meeting spaces.
⚡ Fast USB Connectivity – USB host and USB 3.0 interfaces simplify integration with conferencing equipment.
🔌 PoE Support – Network connectivity and power can be streamlined through the RJ-45 PoE interface.
📺 Multiple Video Outputs – Supports HDMI and 3G-SDI for professional display and production environments.
🎛️ Professional PTZ Control – Supports smooth pan and tilt movement with precise camera positioning.
📍 64 Preset Positions – Quickly recall frequently used camera angles with preset positioning.
🎚️ Flexible Exposure & Focus – Supports automatic and manual focus, exposure and shutter control.
🖥️ Unified AV Integration – Designed to route conferencing audio and video through the host system.
🏢 Built for Professional Rooms – Ideal for meetings, training, presentations, discussions and whiteboard sessions.
| Brand Name | TREND |
| Model Number | TR-VC40-DU |
| Product Type | AI Dual-Lens Tracking Camera |
| Close-Up Resolution | 1080p |
| Panoramic Resolution | 1080p |
| Close-Up Image Sensor | 1/2.8-inch CMOS |
| Close-Up Effective Pixels | 2.14 Million Pixels |
| Close-Up Focal Length | f=4.14mm–47.08mm |
| Close-Up Aperture | F1.6–F2.8 |
| Optical Zoom | 12X |
| Digital Zoom | 16X |
| Close-Up Horizontal FOV | 72.5°–6.3° |
| Panoramic Focal Length | f=1.89mm |
| Panoramic Horizontal FOV | 110° |
| Panoramic Sensor | 1/2.8-inch CMOS |
| Panoramic Effective Pixels | 2.14 Million Pixels |
| Focus System | Automatic, Manual, One-Touch Trigger, PTZ Trigger |
| Shutter Speed | 1/60–1/10,000s |
| Gain Control | Auto / Manual |
| Exposure Control | Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority |
| Minimum Illumination | 0.5 Lux |
| White Balance | Auto |
| PTZ Horizontal Range | -130° to +130° |
| PTZ Vertical Range | -30° to +90° |
| Horizontal Rotation Speed | 0.1°–100°/s |
| Vertical Rotation Speed | 0.1°–80°/s |
| Preset Positions | 64 |
| Microphone Array | 8-Element Smartline Microphone Array |
| DOA Accuracy | <5° |
| Maximum Microphone Detection Distance | 8m |

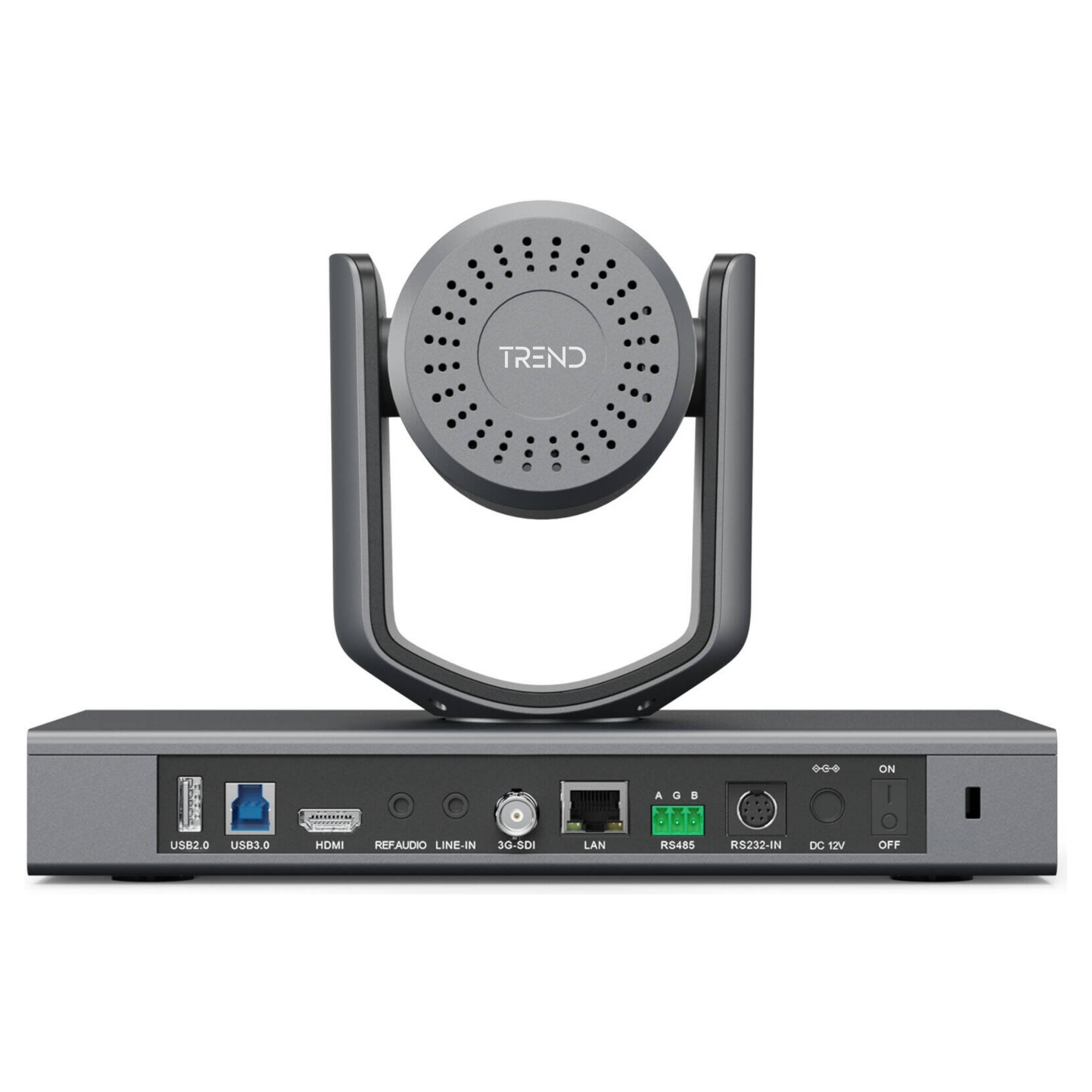

| Network Interface | 1 × 10/100M RJ-45 PoE |
| 3G-SDI | 1 × 3G-SDI |
| HDMI | 1 × HDMI OUT |
| USB Host | 1 × USB 2.0 Type-A |
| USB | 1 × USB 3.0 Type-B |
| Audio Input | 1 × 3.5mm LINE IN |
| Reference Audio | 1 × 3.5mm REF |
| Control Interface | 1 × RS-485 IN, 1 × RS-232 IN |
| Control Protocol | VISCA |
| Power Input | DC 12V |
| Power Switch | Rocker Switch |
| Wireless Control | Infrared Remote |
| Power Consumption | <20W |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% RH to 90% RH |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | 10% RH to 90% RH |
| Dimensions | 245 × 145 × 165 mm |
| Weight | <2 kg |
| Firmware Upgrade | Supported |
| Status Enquiry | Supported |
For detailed product specifications, please download the PDF Datasheet.
