Fortinet FS-224E-POE Switch – 24x GE PoE + 4x SFP Secure Access Switch
Fortinet FS-224E-POE Switch – 24x GE PoE + 4x SFP Secure Access Switch

Fortinet FS-224E-POE Switch – 24x GE PoE + 4x SFP Secure Access Switch

No reviews
Copy link Share via WhatsApp Share via Facebook Share via Instagram Share via Twitter Share via Pinterest
SKU:
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
2,545.04

Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specification
  • Reviews

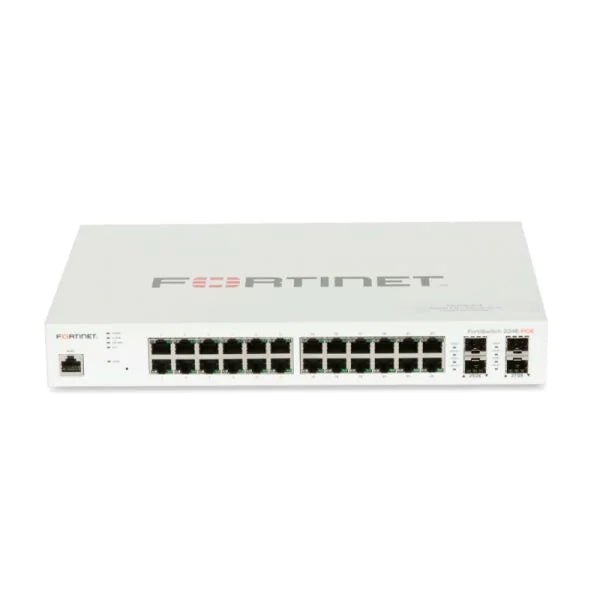

The Fortinet FS-224E-POE Switch is a reliable Layer-2/Layer-3 Ethernet switch designed for secure and scalable enterprise networking. It comes equipped with 24 Gigabit Ethernet (GE) RJ45 ports and 4 Gigabit SFP uplink ports, delivering strong performance for business and campus environments.

With 12 PoE-enabled ports and a 180W PoE power budget, this switch allows you to power devices such as IP phones, wireless access points, and surveillance cameras directly through Ethernet cables, simplifying deployment and reducing infrastructure costs.

Integrated with Fortinet Security Fabric via FortiLink, the FS-224E-POE enables centralized management through FortiGate, offering enhanced visibility, control, and security across your entire network.

The switch supports essential networking features, including VLAN configuration, QoS, link aggregation, and advanced security policies, ensuring efficient traffic management and optimized network performance.

Ideal for small to mid-sized businesses, branch offices, and distributed enterprise networks, the Fortinet FS-224E-POE delivers a secure, flexible, and cost-effective solution for modern networking needs.

FS-224E-POE specification

Hardware Specifications

Total Network Interfaces

24x GE RJ45 ports and 4x GE SFP ports

Dedicated Management 10/100 Port

1

RJ-45 Serial Console Port

1

Form Factor

1 RU Rack Mount

Power over Ethernet (PoE) Ports

12 (802.3af/802.3at)

PoE Power Budget

180 W

Mean Time Between Failures

> 10 years

System Specifications

Switching Capacity (Duplex)

56 Gbps

Packets Per Second (Duplex)

83 Mpps

MAC Address Storage

16 K

Network Latency

< 1µs

VLANs Supported

4 K

Link Aggregation Group Size

8

Total Link Aggregation Groups

Up to number of ports

Packet Buffers

1.5 MB

DRAM

512 MB

FLASH

128 MB

Dimensions

Height x Depth x Width (inches)

1.73 x 9 x 12.99

Height x Depth x Width (mm)

44 x 230 x 330

Power

Power Required

100–240V AC, 50–60 Hz

Power Supply

AC Built in

Redundant Power

Optional FRPS-740

Power Consumption (Average / Maximum)

220.18 W / 223.57 W

Heat Dissipation

74.29554 BTU/h

Environment

Operating Temperature

32–122°F (0–50°C)

Storage Temperature

-4–158°F (-20–70°C)

Humidity

10–90% non-condensing
