- Masterwork Automodules NC9500 Multi-Pocket Fitness Banknote Sorter Masterwork Automodules NC9500 Multi-Pocket Fitness Banknote Sorter
- Description
- Key Features
- Specification
- Reviews

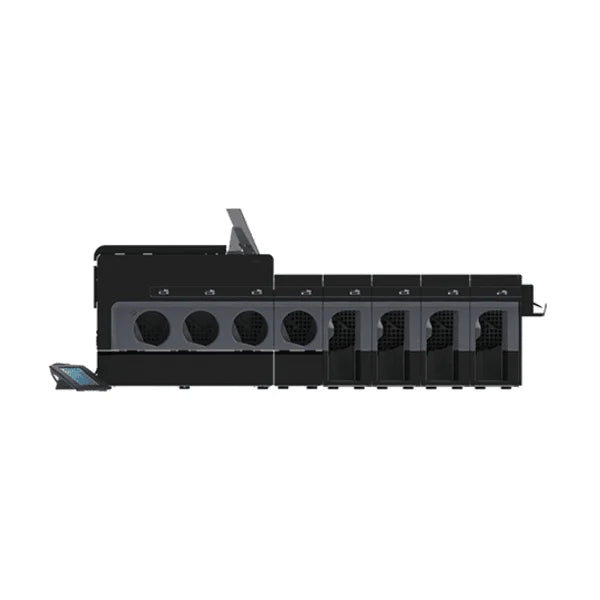

The NC9500 Multi-Pocket Fitness Banknote Sorter is a high-capacity cash processing machine designed for efficient sorting and handling of banknotes in banking and cash-intensive environments. It is built to manage large volumes of currency with multiple sorting pockets, allowing notes to be separated based on denomination, orientation, and condition.
This machine is suitable for financial institutions and businesses that require organized cash processing, improved accuracy, and faster workflows. With its multi-pocket configuration, the NC9500 helps reduce manual handling while increasing operational efficiency.
- Multi-pocket sorting system
- Designed for high-volume banknote processing
- Suitable for denomination and fitness sorting
- Efficient and reliable cash handling solution
- Ideal for banks, cash centers, and financial operations
| Specification | Details |
|---|---|
| Feeding System | Roller Friction System |
| Sorting Modes | Count, Mix, Sort, Face, Orientation, Fitness, Emission |
| Counterfeit Detection | Visible Light, Infrared, Magnetic, Ultraviolet |
| Hopper Capacity | 1000 Banknotes |
| Main Stacker Capacity | 200 Banknotes per stacker |
| Additional Stacker Capacity | 200 / 500 Banknotes |
| Reject Pocket Capacity | 100 Banknotes |
| Sorting Speed | 1000 notes/min (High), 900 notes/min (Mid), 750 notes/min (Low) |
| Available Currencies | USD, EUR, GBP, Local (Optional), up to 32 currencies |
| Countable Note Size | 50 × 100 × 0.06 mm ~ 90 × 185 × 0.12 mm |
| Display | 7″ Touch Screen |
| Interface | LAN, RS232, USB, External Display |
| Power Supply | AC 100V ~ 240V, 50/60Hz |
| Power Consumption | Max. 200W |
| Net Weight | Approx. 50 kg (Main Unit) |
| Additional Stacker Weight | Approx. 7 kg (200-note), Approx. 10.5 kg (500-note) |
| Main Unit Dimensions | Approx. 882 × 348 × 503 mm |
| Base Dimensions | Approx. 882 × 348 × 130 mm |
| Additional Stacker Dimensions (500-note) | Approx. 215 × 348 × 395 mm |
| Additional Stacker Dimensions (200-note) | Approx. 215 × 348 × 276 mm |
| Additional Stacker Base Dimensions | Approx. 215 × 348 × 130 mm |
| Optional Features | S/N Scan, Cheque Scan, TITO |
| Maximum Stacker Quantity | Up to 13 |
