PRODUCT OVERVIEW
Samsung VH55R-R 55" Razor-Thin Bezel Video Wall Display | 700 Nits | Full HD | VHR-R Series | LH55VMBEBGBXUE:

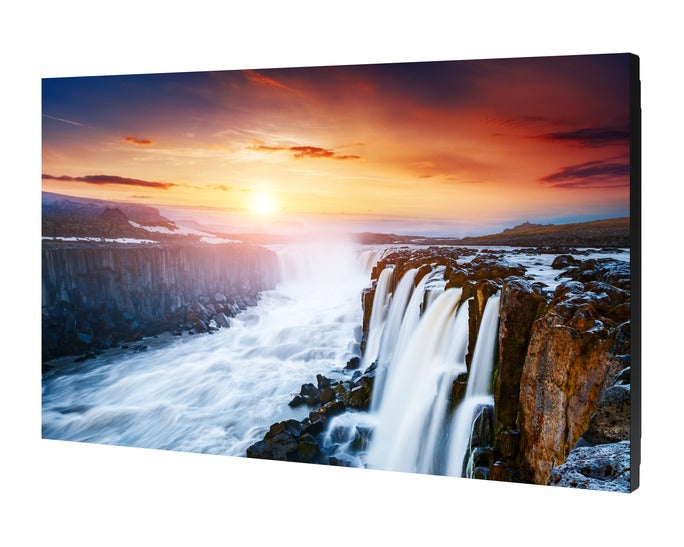

The Samsung VH55R-R 55" Razor-Thin Bezel Video Wall Display is designed for businesses that need a powerful, professional, and virtually seamless visual experience. Featuring an exceptionally thin 0.44 mm bezel and 0.88 mm bezel-to-bezel design, it creates an immersive video wall where multiple screens can appear as one continuous display. With Full HD 1920 × 1080 resolution, up to 700 nits brightness, 178° wide viewing angles, non-glare performance, and advanced image enhancement technology, your content remains vivid, clear, and easy to see from virtually any position—even in brightly lit environments.

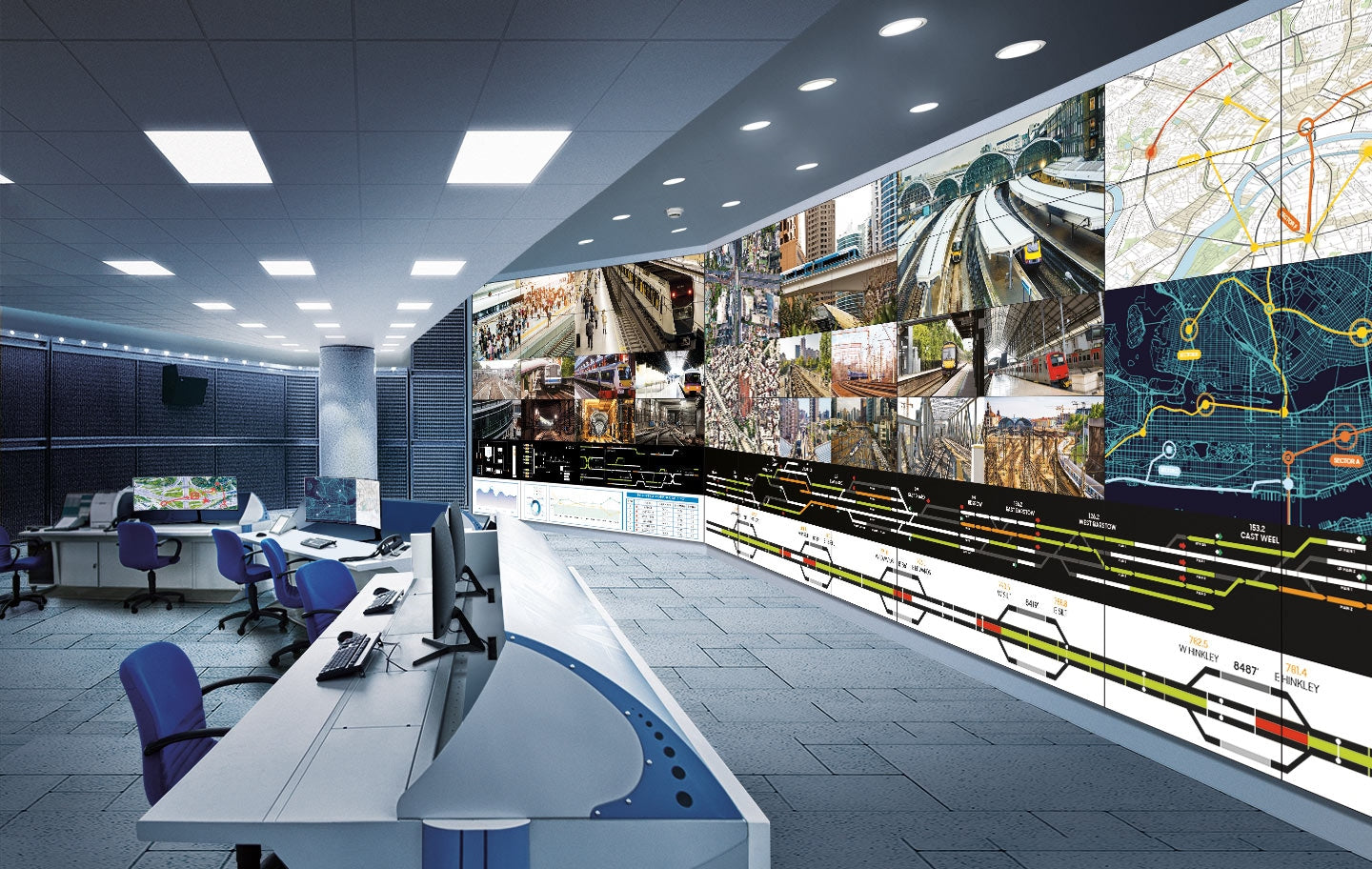

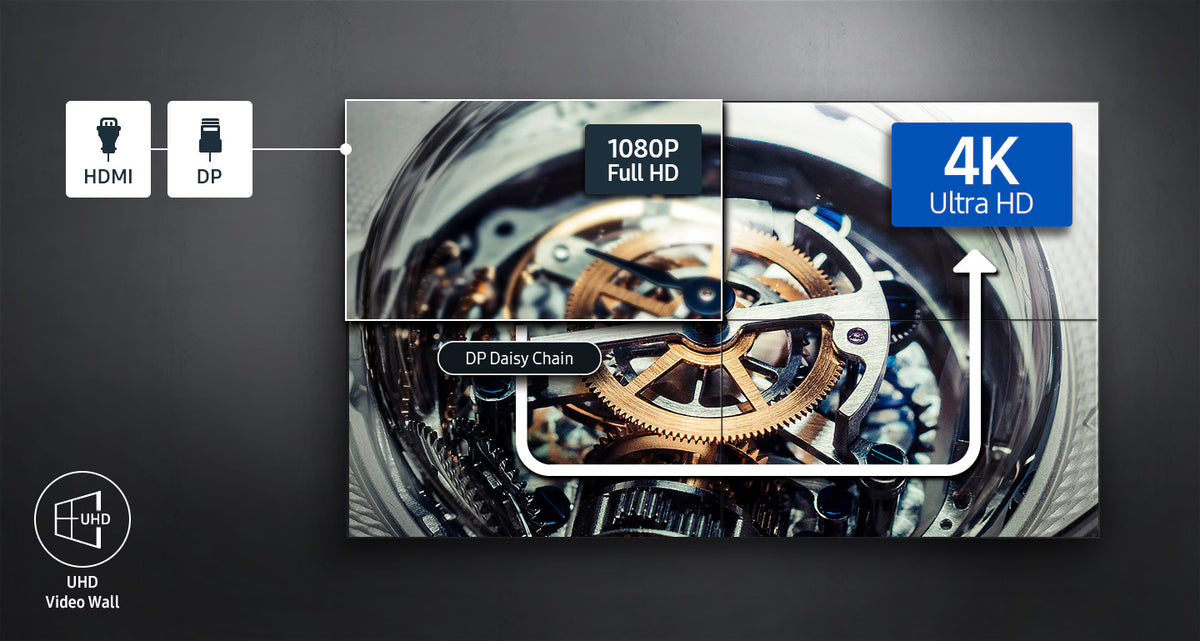

Built for demanding 24/7 commercial applications, the Samsung VHR-R combines an ultra-slim 69.9 mm profile with comprehensive calibration features and flexible connectivity. Its DisplayPort 1.2 and HDMI daisy-chain capability supports UHD content across video walls up to 5 × 5 displays without an external graphics card or UHD splitter. Mobile calibration through Samsung Color Expert Pro Mobile makes setup easier, while factory calibration helps maintain consistent brightness and color across the entire video wall. Whether used in retail stores, control rooms, corporate environments, public spaces, or digital signage installations, the VH55R-R delivers a sleek, reliable, and highly immersive visual solution.
|
🖼️ 0.44 mm Razor-Thin Bezel — Creates an exceptionally seamless viewing experience with an ultra-thin 0.88 mm bezel-to-bezel design. 🌟 700 Nits High Brightness — Delivers vibrant and highly visible content for demanding commercial environments. 👀 178° Wide Viewing Angle — Lets audiences enjoy clear and accurate visuals from virtually any viewing position. 🎨 Advanced Image Enhancement — Picture Enhancer and Black Equalizer modes improve contrast, colors, and visibility of dark details. 🔗 5 × 5 Video Wall Support — Daisy-chain multiple displays to create large UHD video walls without requiring an external graphics card or splitter. |
 |
 |
📱 Mobile Calibration — Color Expert Pro Mobile enables convenient white balance calibration using a mobile camera. 🛠️ Comprehensive Calibration — Factory calibration and Color Expert Pro software help maintain consistent brightness and color across displays. 🏢 Slim Commercial Design — The ultra-slim 69.9 mm depth provides a clean, modern appearance while saving installation space. ☀️ Non-Glare Display — Helps reduce reflections and maintain comfortable visibility under varying ambient lighting conditions. ⚡ 24/7 Commercial Operation — Built for continuous professional use with reliable performance for demanding business environments. |

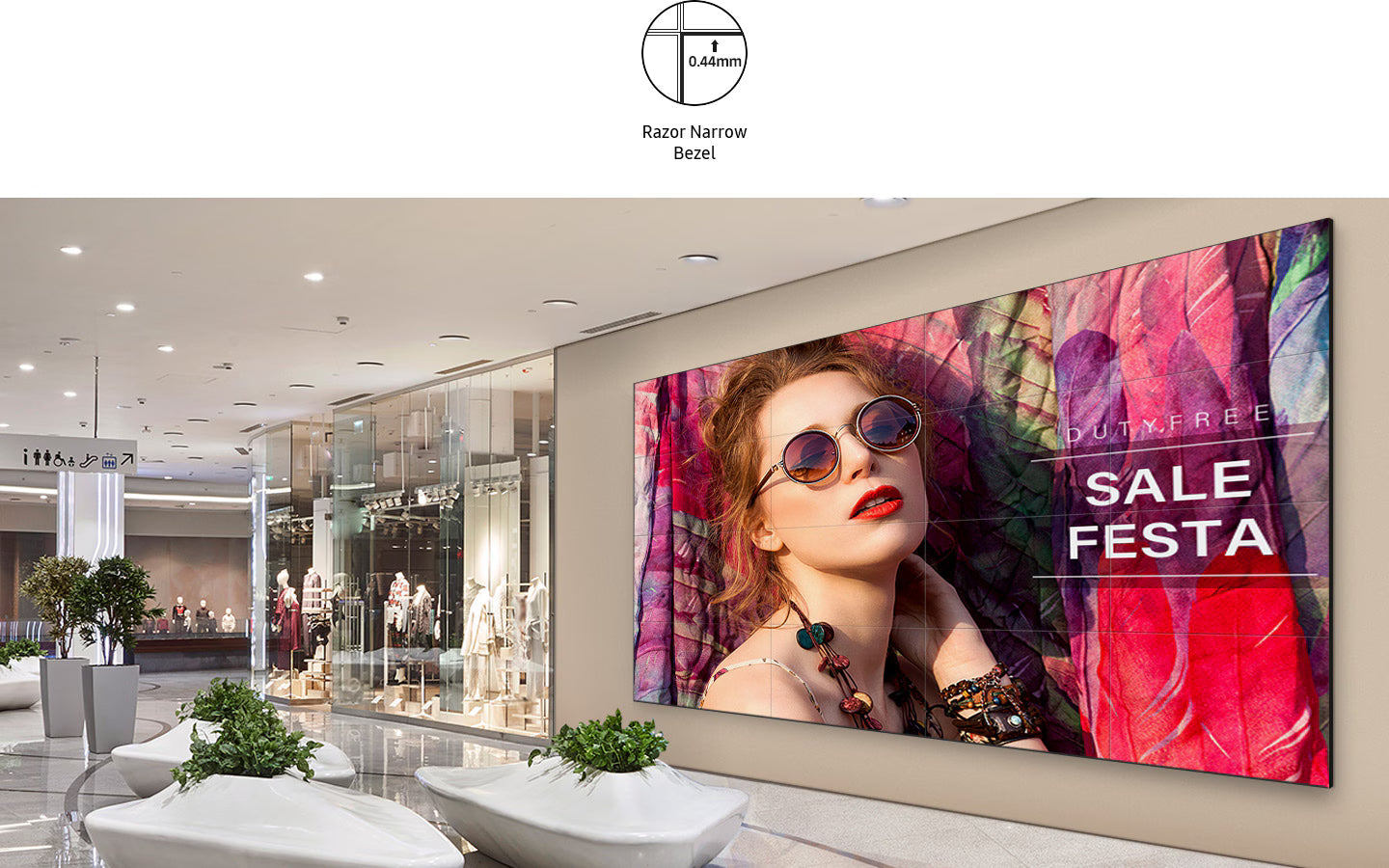

🖼️ 0.44 mm Razor-Thin Bezel — Creates an exceptionally seamless viewing experience with an ultra-thin 0.88 mm bezel-to-bezel design.
🌟 700 Nits High Brightness — Delivers vibrant and highly visible content for demanding commercial environments.

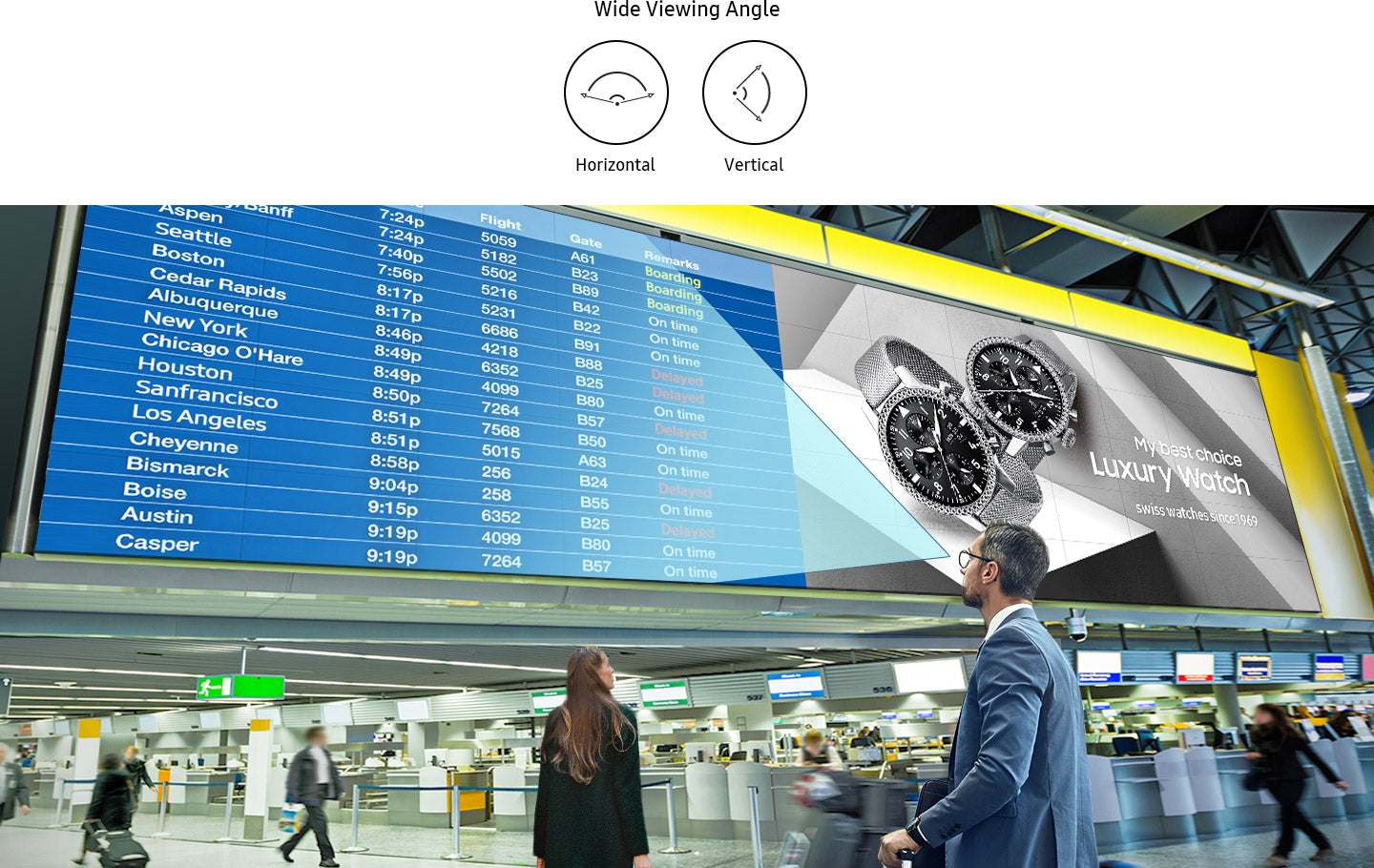

👀 178° Wide Viewing Angle — Lets audiences enjoy clear and accurate visuals from virtually any viewing position.
🎨 Advanced Image Enhancement — Picture Enhancer and Black Equalizer modes improve contrast, colors, and visibility of dark details.
🔗 5 × 5 Video Wall Support — Daisy-chain multiple displays to create large UHD video walls without requiring an external graphics card or splitter.
📱 Mobile Calibration — Color Expert Pro Mobile enables convenient white balance calibration using a mobile camera.
🛠️ Comprehensive Calibration — Factory calibration and Color Expert Pro software help maintain consistent brightness and color across displays.

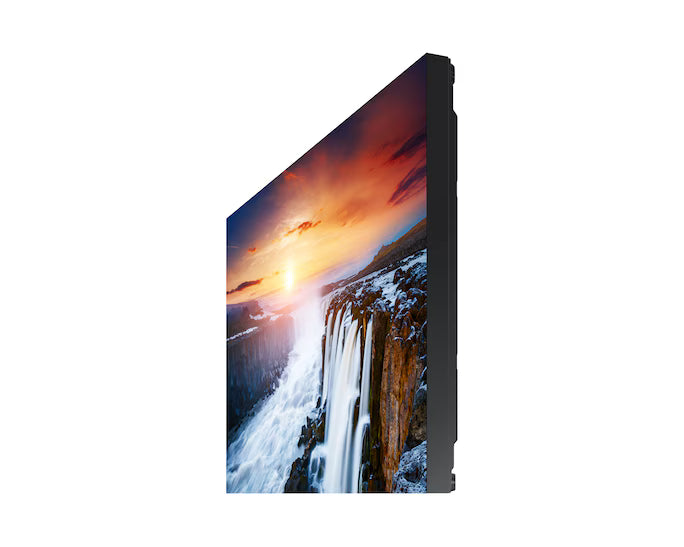

🏢 Slim Commercial Design — The ultra-slim 69.9 mm depth provides a clean, modern appearance while saving installation space.
☀️ Non-Glare Display — Helps reduce reflections and maintain comfortable visibility under varying ambient lighting conditions.
⚡ 24/7 Commercial Operation — Built for continuous professional use with reliable performance for demanding business environments.
| Brand Name | Samsung |
| Model Number | VH55R-R |
| Part Number | LH55VHRRBGBXUE |
| Series | VHR-R |
| Display Size | 55" |
| Panel Type | Direct LED |
| Resolution | 1,920 × 1,080 |
| Pixel Pitch | 0.63 × 0.63 mm |
| Brightness | Max. 700 cd/m² |
| Contrast Ratio | 1,100:1 |
| Dynamic Contrast Ratio | 30,000:1 |
| Viewing Angle | 178° / 178° |
| Response Time | 8 ms |
| Color Gamut | 0.72% |
| Glass Haze | 0.28% |
| Bezel Width | 0.44 mm |
| Bezel-to-Bezel | 0.88 mm |
| H-Scanning Frequency | 57.3–70 kHz |
| V-Scanning Frequency | 47–63 Hz |
| Maximum Pixel Frequency | 78 MHz |

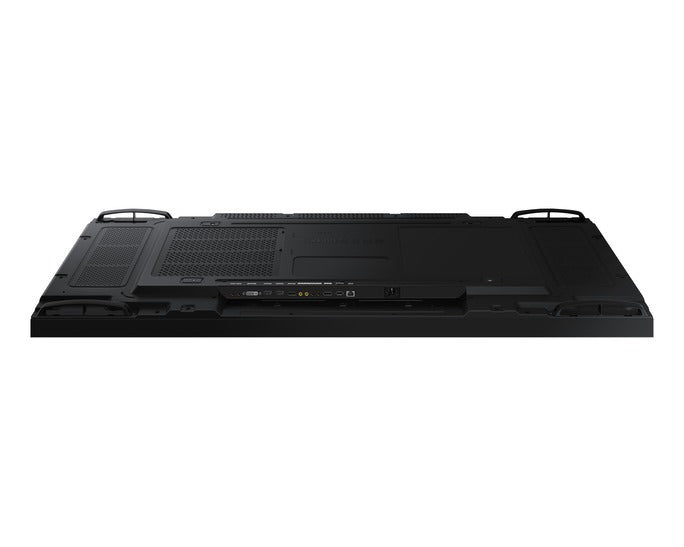

| HDMI In | 2 |
| DisplayPort In | 1 |
| DVI In | 1 |
| USB | 1 |
| IR In | Yes |
| Audio In | Yes |
| Audio Out | Stereo Mini Jack |
| Video Out | Yes |
| RS232 In | Yes |
| RS232 Out | Stereo Mini Jack |
| RJ45 In | Yes |
| RJ45 Out | No |
| Tuner In | No |
| HDBaseT In | No |
| Power Supply | AC 100–240 VAC, 50/60 Hz |
| Power Consumption (On Mode) | 270 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Operating Temperature | 0°C–40°C |
| Operating Humidity | 10–90% |

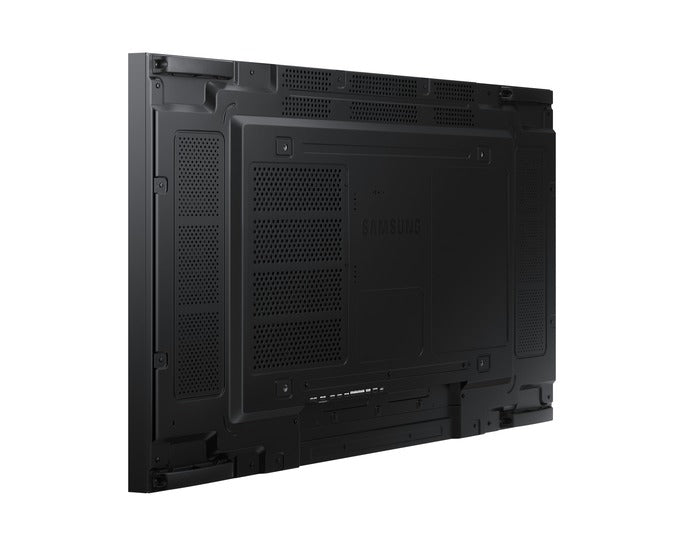

| VESA Mount | 600 × 400 mm |
| Frame Material | Glossy |
| Mount | Yes |
| Stand | No |
| External Memory Slot | No |
| MagicInfo Daisy Chain Video Wall Support | Yes |
| EMC Certification | Class B |
| Safety Certification | 60950-1 |
| Set Dimensions (W × H × D) | 1211.0 × 681.7 × 69.9 mm |
| Set Weight | 16.8 kg |
| Package Dimensions (W × H × D) | 1414.0 × 844.0 × 257.0 mm |
| Package Weight | 25.1 kg |
